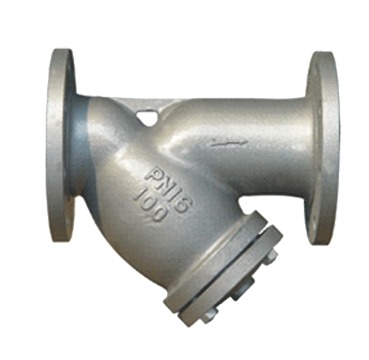

AISI 904L Y Type Strainers
AISI 904L Y Type Strainers are used for filtering out unwanted and hazardous particles from the pipeline and thus protecting the pumps, valves, meters and similar mechanical equipment. These Y type strainers can be manufactured using forged, cast or fabricated material and specifications.
Anand Steels manufactures and supplies AISI 904L strainers with flanged, butt-weld, socket-weld and screwed ends. AISI 904L y type strainers are manufactured to ASTM A182 F904L forged material; cast 904l material and ASTM A240/A240M Type 904L fabricated material specifications. These 904L stainless steel y-type strainers are designed and manufactured to ANSI/ASME B16.34, API, BS, ISO, DIN and EN product standards. AISI 904L y type strainers are duly marked for traceability. We offer worldwide shipping by Sea or Air freight options.
For more information on AISI 904L Y Type Strainers, see below details.
- Sizes: 3/8” to 24” NPS
- Pressure Ratings: Class 75/150/300/400/600/900/1500/2500 and others
- Ends: Butt-Weld, Socket-Weld, Screwed, and Flanged End.
- Construction: Cast, Forged and Fabricated
- Dimensions & Tolerances;: ASME / ANSI, API, BS, EN, ISO, GOST and DIN Standards
- Material Specifications: ASTM A182/A182M F904L, ASTM A240/A240M Type 904L, Cast 904L / UNS N08904, Uranus® B6, X1-Ni-Cr-Mo-Cu-25-20-5, DIN/EN/Werkstoff Number 1.4539
- Origin: India, China, Taiwan, Korea, Japan, Sweden, Italy, France, Germany, UK & USA
Chemical Requirements for AISI 904L Y Type Strainers
| Elements | Composition, % |
|---|---|
| Carbon (C) | 0.02 Max |
| Manganese (Mn) | 2.00 Max |
| Phosphorus (P) | 0.04 Max |
| Sulfur (S) | 0.03 Max |
| Silicon (Si) | 1.00 Max |
| Chromium (Cr) | 19.00 – 23.00 Max |
| Nickel (Ni) | 23.00 – 28.00 Max |
| Molybdenum | 4.00 – 5.00 Max |
| Copper (Cu) | 1.00 – 2.00 Max |
| Nitrogen (N) | 0.10 Max |
Mechanical Requirements for AISI 904L Y Type Strainers
| Elements | Composition | |
|---|---|---|
| Tensile Strength, min ksi [MPa] | 71 [490] | |
| Yield Strength, min ksi [MPa] | 31 [215] | |
| Elongation in 2 inch or 50mm (or 4D), min % | Longitudinal | 35 |
| Transverse | 25 | |
Applications for AISI 904L Y Type Strainers
- Process equipment in chemical industry
- Petrochemical industry
- Bleaching equipment in the pulp and paper industry
- Flue gas cleaning
- Desalination
- Seawater handling
- Hydrometallurgy
- Food and beverage
- Pharmaceuticals
- Heat exchangers
